LOGIQ S8 XDclear 2.0

Console Button Overview

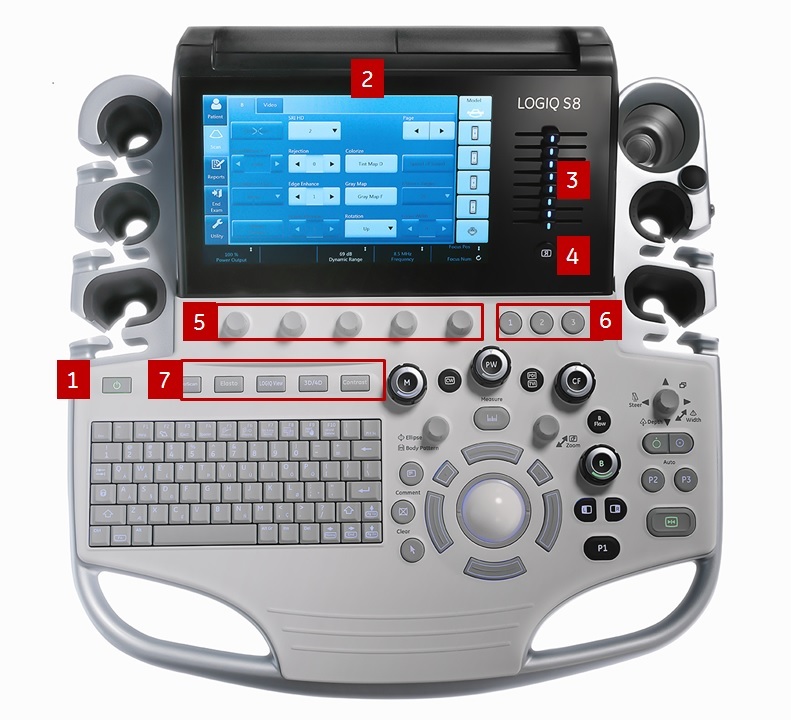

  • 1. Power button
    2. Touch Panel
    3. TGC
    4. Reverse key
    5. Rotary and Joystick controls
    6. User Define keys
    7. BT Keys

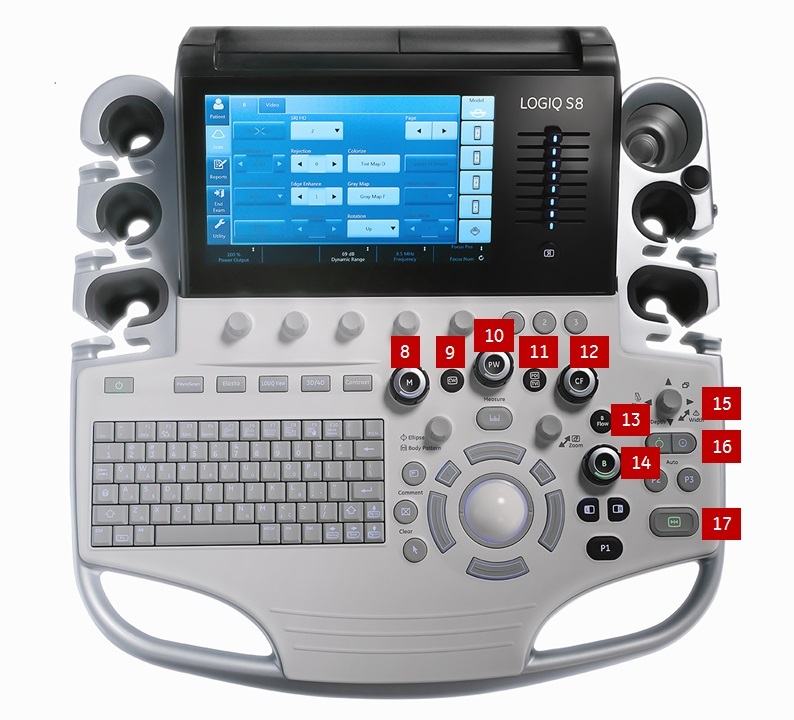

  • 8. M-Mode/M Gain
    9. CW Doppler (Option)
    10. PW Doppler/PW Gain
    11. PDI/TVI (Option)
    12. Color Flow/CF Gain
    13. B-Flow (Option).
    14. B-Mode/B Gain
    15. Joystick: Depth, Steer, Width
    16. Auto Optimize
    17. Freeze key

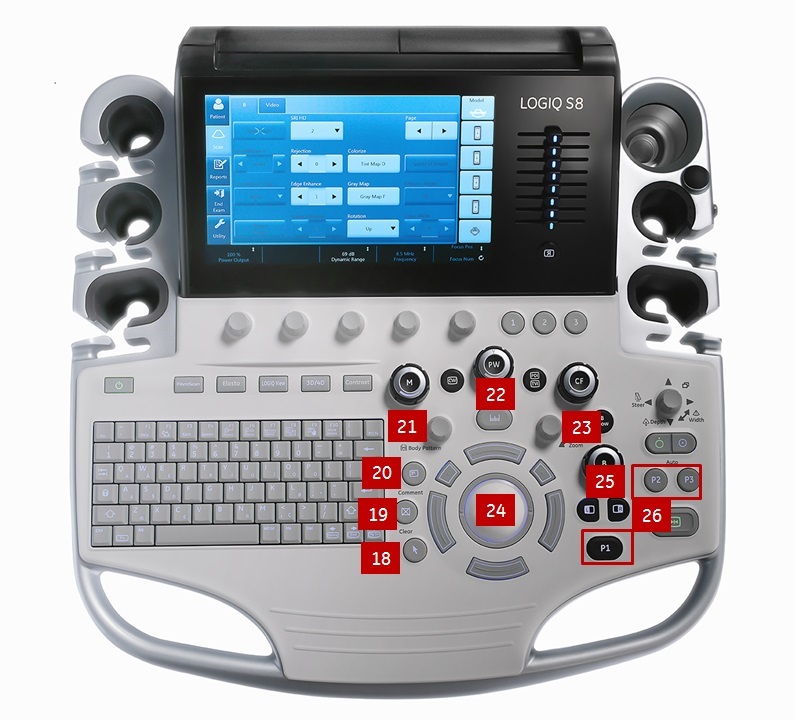

  • 18. Arrow
    19. Clear
    20. Comment
    21. Body pattern/Ellipse
    22. Measure
    23.Zoom
    24. Trackball and Trackball keys
    25. L/R key
    26. Print keys
