My Trainer

LOGIQ S8 XDclear 2.0

Report and Worksheet

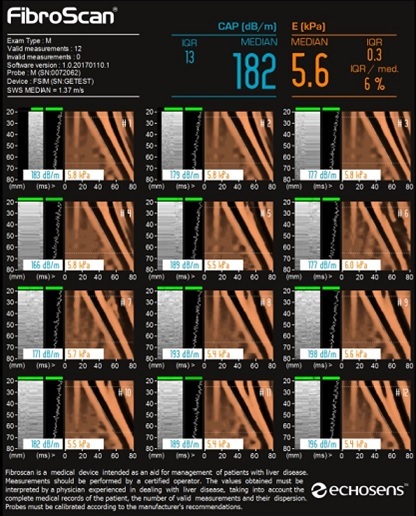

  • FibroScan Report
    FibroScan Report will end FibroScan measurement and show the measurement results as a report view.
    1. Press FibroScan Report. FibroScan Report displays.
    2. Press appropriate print key to store the monitor view on clipboard as necessary.

    FibroScan Report is showed only once for the active measurement.

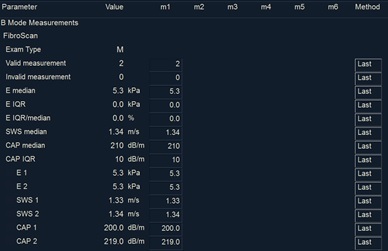

  • FibroScan Worksheet
    1. Perform a FibroScan measurement.
    2. Press Report.
    3. Press Worksheet and select B-Mode.
    4. FibroScan measurement results displays on the worksheet of current exam.
    5. Move the cursor over the value in the method column and press Set.
    6. The pull-down menu displays. Move the cursor to select the method and press Set. The selected method is displayed in the column.
