Registration

  • Point Registration
    To perform a Point Registration,

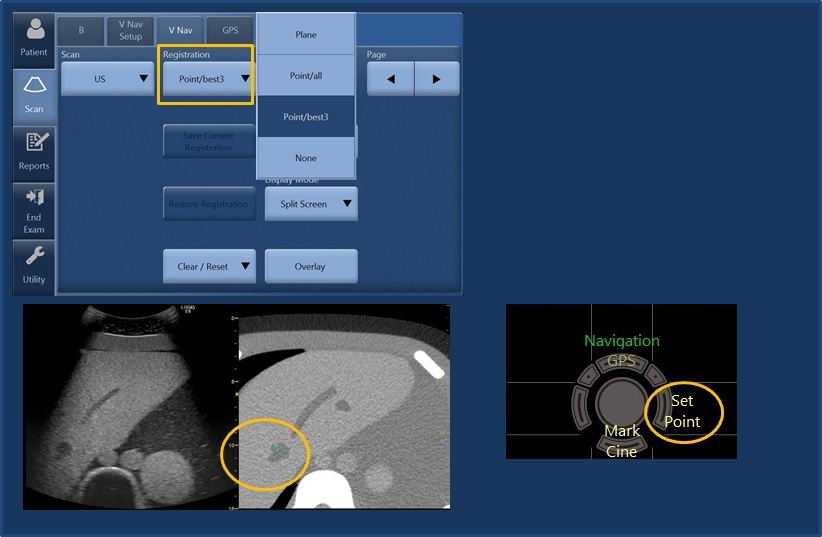

    1. Select Registration -> Point from the Touch Panel.
    2. Find a common point on both the 3D Dataset and Ultrasound image. Use the Windows Pointer to select each point, then press Set Point each time. Do this 3 times.
    3. Move the probe and ensure that this registration is correct.

  • Parallel Plane Registration

    A plane registration constitutes a plane lock and a translation point.

    To perform a Parallel Plane Registration,

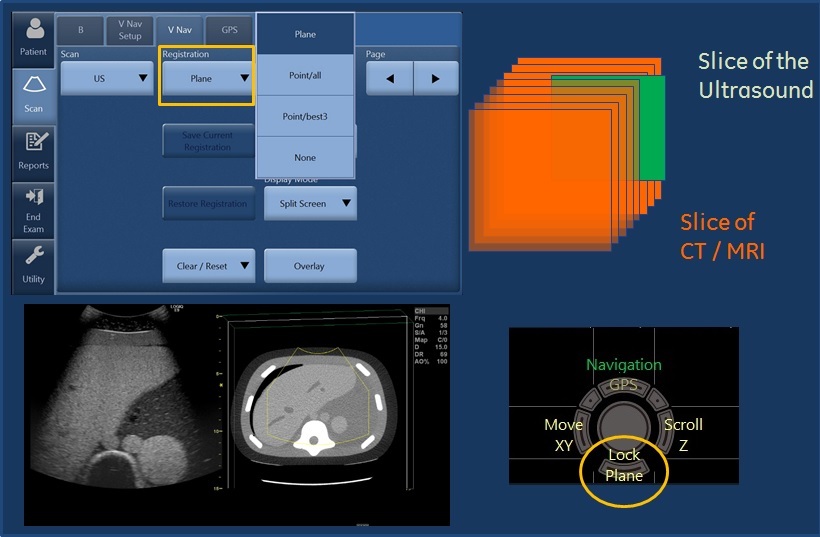

    1. Select Registration -> Plane from the Touch Panel.

    2. Hold the probe parallel to the acquired (imported) 3D dataset, being careful not to tilt, twist, or rotate the probe.

    3. Press the Lock Plane (bottom Trackball key) to lock the plane as parallel.

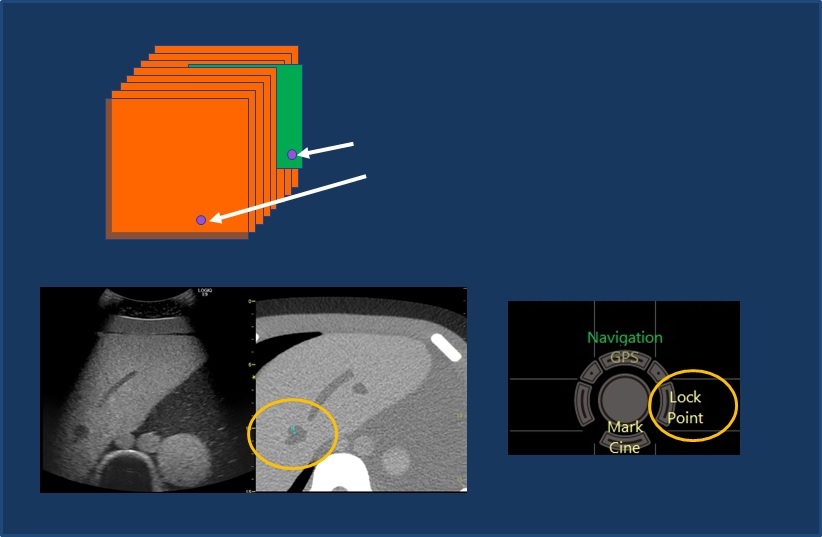

  • 4. Define a translation point, by marking a common point in each image (Ultrasound and 3D Dataset) using the Windows Pointer and Trackball key labelled Lock Point. This allows the system to do an x, y, and z correction at that point.

    5. Move the probe and ensure that this registration is correct.
