LOGIQ S8 XDclear 2.0

General

  • Contrast Tech.

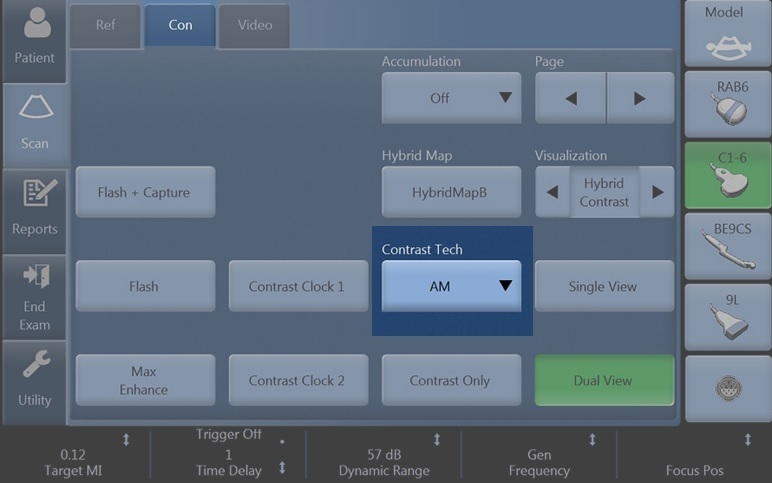

    Select the active contrast acquisition mode. "HRes", "AM", and "CHA"

    HRes : The main purpose of HRes mode is to image the harmonic signal from the contrast agent. This mode transmits two consecutive pulses with inverted polarity as a contrast transmit group. The received signals are summed to cancel the fundamental (i.e. linear) responses and then the non-linear harmonic responses are extracted. Harmonic - perfusion, tumor flow characteristics

    CHA : The main purpose of CHA mode is to image the non-linear signal from the contrast agent with strong tissue suppression. This mode transmits four consecutive pulses with alternate polarity (i.e. two pairs of Phase Inversion) as a contrast transmit group.

    AM : The main purpose of AM mode is to image the non-linear signal from the contrast agent. This mode transmits two or more consecutive pulses with the different amplitude as a contrast transmit group. The received signals are summed with the different coefficients to cancel the linear responses and then the non-linear responses are extracted.



  • Single View/Dual View

    Single View displays the active Contrast image only.

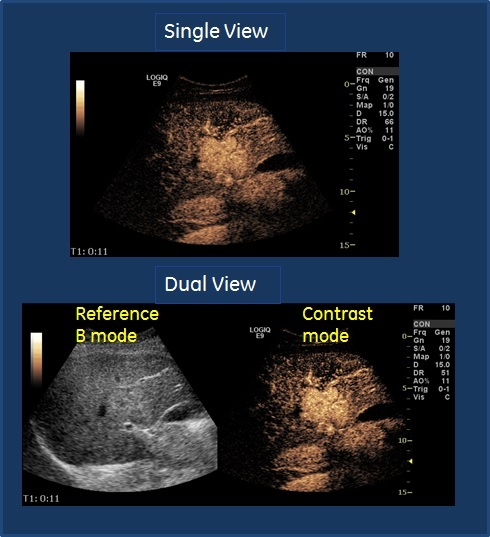

    Dual View displays the active Contrast image and the reference image simultaneously.

  • Visualization

    Contrast. Displays the contrast-enhanced image.

    Tissue. Displays the tissue image.

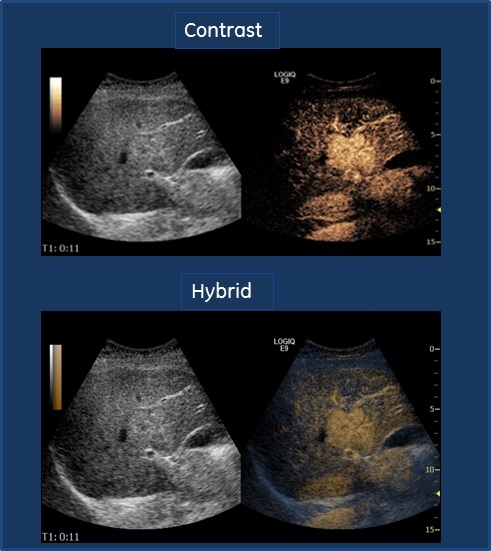

    Hybrid Contrast. Displays the contrast-enhanced image and the tissue image using Hybrid Map.

  • Frequency
    Select frequency type for each contrast technique.
    Frequency (AM): Res, Gen, Pen
    Frequency (HRes): Gen
    Frequency (CHA): Gen

    Target MI

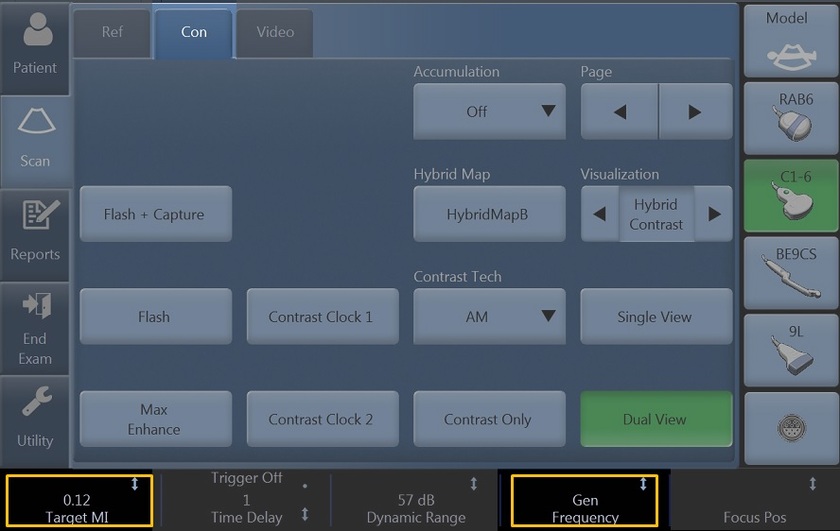

    Target MI Control provides the automated adjustment of the acoustic output to keep the specified target MI value to reduce the unexpected results on the contrast exam.



  • Flash

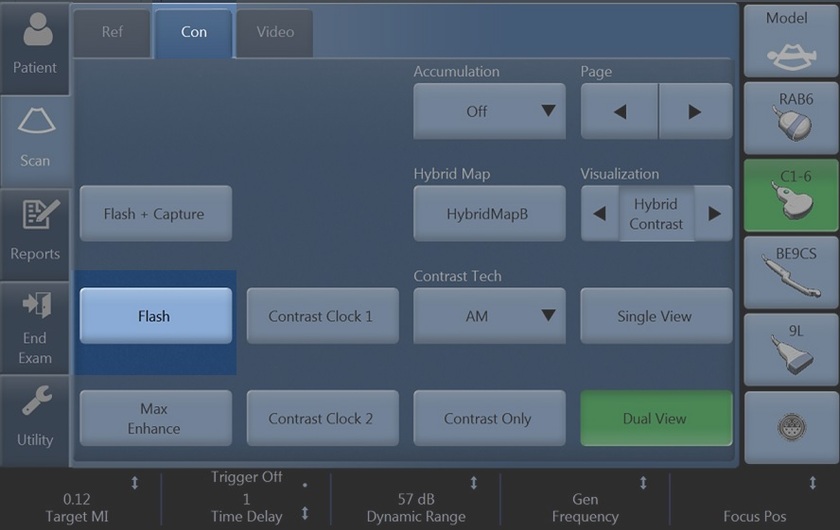

    This feature provides a way to expose the higher acoustic power for a specified time duration by pressing a control once.



  • Max Enhance

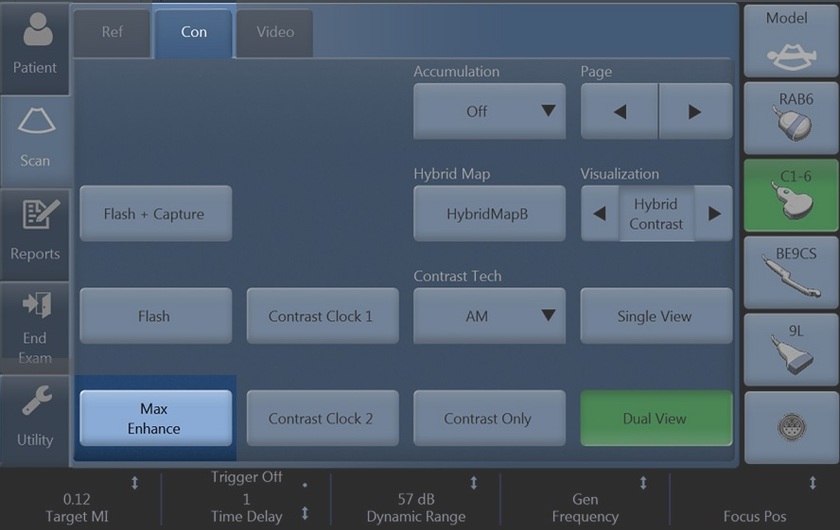

    Sets the acoustic output to its maximum setting (100%)



  • Contrast Clock (Timer)

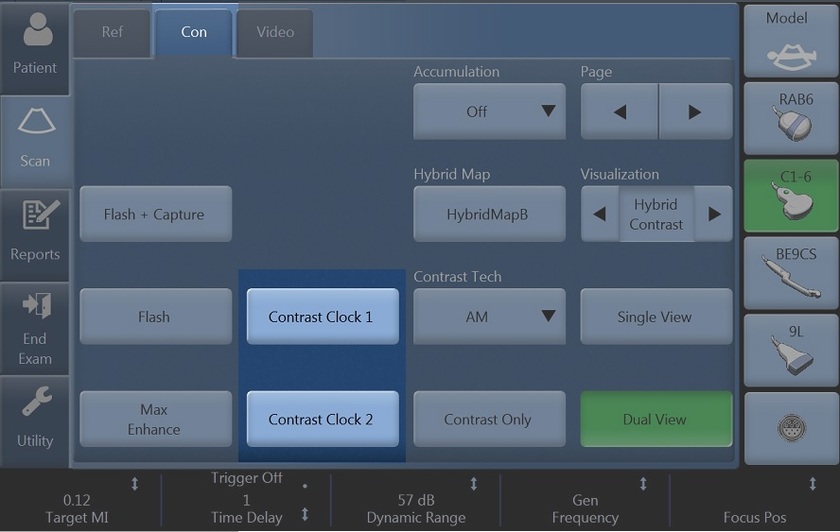

    You can use the Contrast Clock by activating it at the time of injection and deactivating it at the end of the exam. Two timers can be displayed on the bottom-left corner in image area and info area for several injection.
