LOGIQ S8 XDclear 2.0

System transportation

  • 1. Adjust the monitor and control panel to their lowest positions. Flip down the monitor and lock the monitor arm.

    2. Turn the system off, including the circuit breaker, and removed the plug from the wall.

    3. All cables from off-board peripheral devices must be disconnected from the console.

    4. Disconnect the footswitch from the console.

    5. Wind the power cable around the cable hook.

    NOTE: To prevent damage to the Power Cord, DO NOT pull excessively on the cord or make sharp bends while wrapping.

    6. Connect all probes to be used while off site. Ensure that probe cables are out of the way from the wheels and not protruding beyond the console. Use the probe management hooks located below the Operator Panel to further secure the probe cables. Store all other probes in their original cases or in soft cloth or foam to prevent damage.

    7. Put the coupling gel in the gel holder.

    8. Ensure that no loose items are left on the console and unlock the wheels.

  • Moving the System

    1. The system weighs approximately 85 kg (187 lbs.), depending on which peripherals are loaded onto the system. To avoid possible injury and equipment damage:

    • Be sure the pathway is clear.

    • Limit movement to a slow careful walk.

    • Use two or more persons to move the system on inclines or long distances.

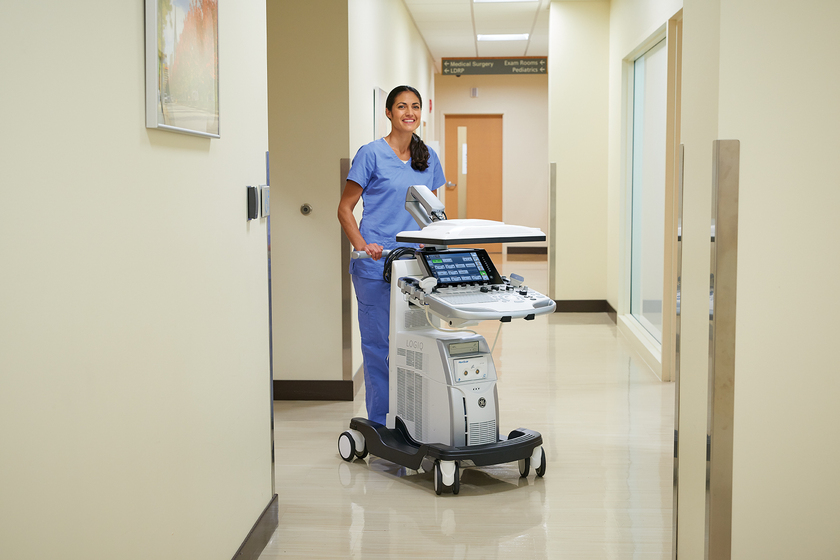

    2. Grasp the rear handle bar and push the system.

    NOTE: The swivel lock on the left-rear caster helps control the system while moving.

    • Take extra care when moving the system long distances and on inclines (>5 degrees). Ask for help if necessary.

    • DO NOT attempt to move the console using any cables or fixtures, such as the probe connectors.

    • DO NOT attempt to move the system by pulling cables or belts placed around the monitor and/or monitor arm.

    • Avoid ramps that are steeper than ten degrees to avoid tipping over the system.

    NOTE: Wheel chair ramps are usually less than five degrees

    • Do not let the system strike walls or door frames.

    • Use extra care when crossing door or elevator thresholds.

    NOTE: When you cross the threshold with the LOGIQ S8, move quickly.

    3. Once the destination is reached, lock the wheels.

    • Do not let the system strike walls or door frames.

    • Use extra care when crossing door or elevator thresholds.

    NOTE: When you cross the threshold with the LOGIQ S8, move quickly.
